Zig Zag

Zig Zag is a price chart overlay that simplifies the up and down movements and transitions based on a percent change smoothing threshold. [Discuss] 💬

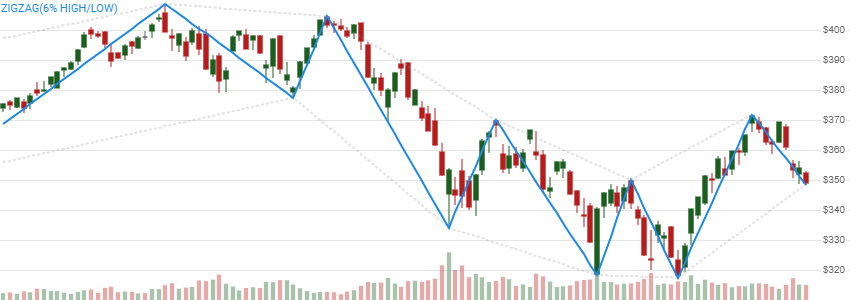

chart for Zig Zag

// C# usage syntax
IEnumerable<ZigZagResult> results =
  quotes.GetZigZag(endType, percentChange);

Parameters

endType EndType - Determines whether Close or High/Low are used to measure percent change. See EndType options below. Default is EndType.Close.

percentChange decimal - Percent change required to establish a line endpoint. Example: 3.5% would be entered as 3.5 (not 0.035). Must be greater than 0. Typical values range from 3 to 10. Default is 5.

Historical quotes requirements

You must have at least two periods of quotes to cover the warmup periods, but notably more is needed to be useful.

quotes is a collection of generic TQuote historical price quotes. It should have a consistent frequency (day, hour, minute, etc). See the Guide for more information.

EndType options

EndType.Close - Percent change measured from Close price (default)

EndType.HighLow - Percent change measured from High and Low price

Response

IEnumerable<ZigZagResult>

This method returns a time series of all available indicator values for the quotes provided.
It always returns the same number of elements as there are in the historical quotes.
It does not return a single incremental indicator value.
If you do not supply enough points to cover the percent change, there will be no Zig Zag points or lines.
The first line segment starts after the first confirmed point; ZigZag values before the first confirmed point will be null.
The last line segment is an approximation as the direction is indeterminate.

🚩 Warning: depending on the specified endType, the indicator cannot be initialized if the first Quote in quotes has a High,Low, or Close value of 0 (zero).

👉 Repaint warning: the last line segment will always be redrawn back to the last known pivot. Do not attempt to calculate incremental values since previous values may change based on newer quotes.

ZigZagResult

Date DateTime - Date from evaluated TQuote

ZigZag decimal - Zig Zag line for percentChange

PointType string - Zig Zag endpoint type (H for high point, L for low point)

RetraceHigh decimal - Retrace line for high points

RetraceLow decimal - Retrace line for low points

Utilities

See Utilities and helpers for more information.

Chaining

Results can be further processed on ZigZag with additional chain-enabled indicators.

// example
var results = quotes
    .GetZigZag(..)
    .GetSlope(..);

This indicator must be generated from quotes and cannot be generated from results of another chain-enabled indicator or method.
